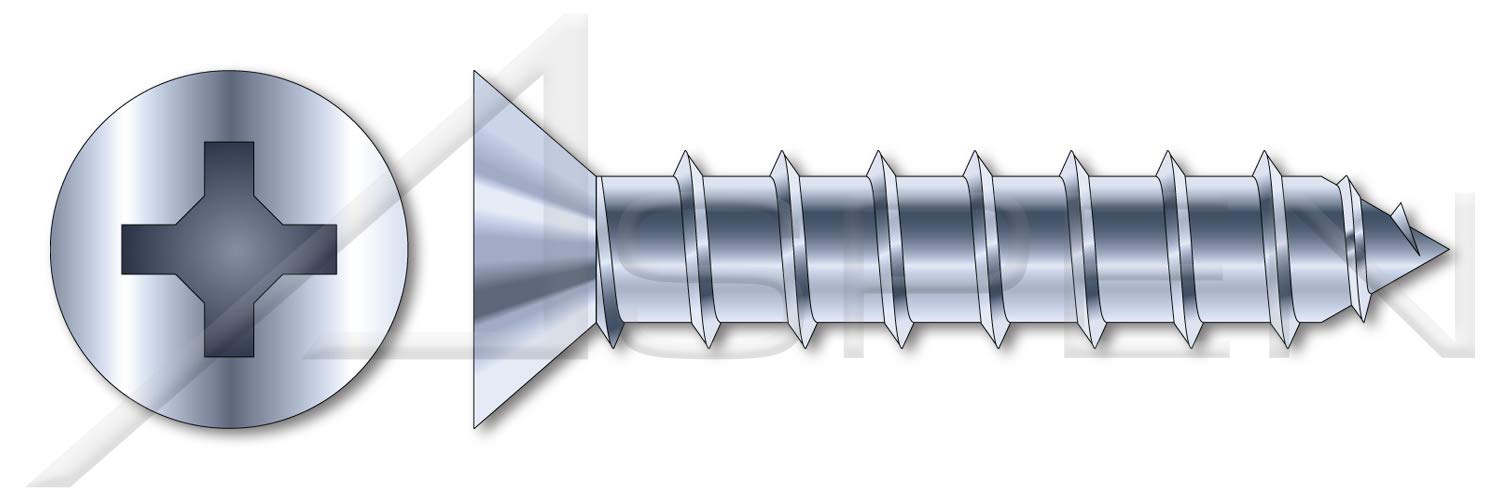

(4000 pcs) #10 X 2, Self-Tapping Sheet Metal Screws, Type A, Flat Phillips Drive, Steel, Zinc Plated and Baked

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): #10 | Thread Pitch: 12 | Diameter (Dimension): 0.19' | Major Diameter (Maximum): 0.194' | Major Diameter (Minimum): 0.188' | Minor Diameter (Maximum): 0.133' | Minor Diameter (Minimum): 0.126' | Length (Nominal): 2' | Thread Length (Minimum): 1.884' | Thread Length (Maximum): 1.902' | Drive Recess Size: #2 | Head Diameter (Minimum): 0.333' | Head Diameter (Maximum): 0.362' | Head Height, Overall (Minimum): 0.098' | Head Height, Overall (Maximum): 0.116' | PRODUCT ATTRIBUTES | Category: Self-Tapping Sheet Metal Screws | System of Measurement: Inch | Brand: Aspen Fasteners | Form and Design: Type 'A' | Head Style: Flat Countersunk Head | Head Style Detail: 82 Degree Countersink | Drive Style: Cruciform Recess Drive | Drive Detail: Phillips Type H | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Material Processes: Case Hardened | Coating: Zinc Plated and Baked | Coating Color: Clear | Hardness Rating: Rockwell C45 min. / Core=C28-C38 | Origin: Origin Undefined | Standards and Specifications: ASME B18.6.3 and SAE J933 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Drive System : Phillips
• Head Type : Flat
• Screw Head Style : Flat
• Screw Point Style : Type A Point
• Thread Size : #10-12
• Thread Style : Right Hand
• Thread Type : Unc

Item details

• ASIN : B01AWR8DH2
• Brand : ASPEN FASTENERS
• Fastener Type : sheet metal screws,sheet metal tapping screws
• Item Weight : 42.7 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMSC334-10X2-004000
• Number Of Items : 1
• Part Number : AMSC334-10X2-004000
• UPC : 692559968575
• Unit Count : 4000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Steel
• Metal Type : Zinc,Steel

Measurements

• Fastener Size : No. 10
• Item Dimensions : 2 x 0.19 x 2 inches
• Item Weight : 42.7 Pounds
• Size Name : #10 X 2'
• Thread Coverage : Fully Threaded
• Thread Size : #10-12
