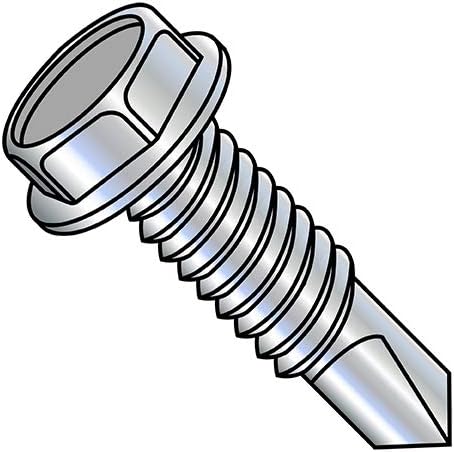

10-24X3/4 Unslotted Hex Washer Self Drilling Screw Full Thread Machine Screw Zinc (Pack Qty 5,000) BC-1012KWMS by Korpek

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot. Type BSD: May be used to attach plywood, soft woods or composition board to metal, or attach metal to metal. Type CSD: The finer thread pitch reduces friction and driving torques. Type-CSD screws are normally used with thicker materials.. The wafer head design allows the screw to set flush in wood and softer materials and provides a clean, finished appearance. All self-drilling screws offer economical benefits: reduces labor and tooling costs; reduces or eliminates drill bits and taps. AISI 1016 - 1024 or equivalent steel. Machine Pack Count - Margin error of +/- 5%

Features & Specs

• Drive System : External Hex
• Head Type : Flat
• Screw Head Style : Flanged, Wafer
• Screw Point Style : Self-Drill Point

Item details

• ASIN : B094WF9TBQ
• Brand : Korpek.com
• Fastener Type : machine screw,self drilling screw
• Item Weight : 33.3 Pounds
• Manufacturer : Korpek LLC
• Model : BC-1012KWMS
• Number Of Items : 5000
• Part Number : BC-1012KWMS

Materials & Care

• Exterior Finish : Metal,Steel,Zinc
• Material Type : Zinc
• Metal Type : Steel,Zinc

Measurements

• Item Weight : 33.3 Pounds
• Size Name : 10-24X3/4
• Thread Coverage : Fully Threaded
